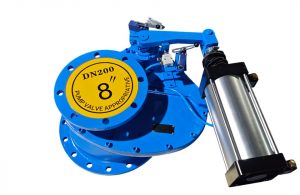

Rotating Disc Valve
What is rotation disc valve?
- Our Rotation disc valve is a component designed to replace dome valve.
- This new design have a unique function, shearing disc, has self-lapping rotation with seal ring during operation, while it can prevent particles lodging on the surface to provide excellent sealing condition.
- Tungsten shearing disc and seal ring provided superior wear resistance, making the valve can operate in high temperature with wide range pressure.
Specification:
| Sizes : | DN40 – DN300 |
| Pressure : | 1.0 – 1.6 MPa |
| Temperature | ≤ 250 °C |
| Applications | Pulverized coal, fly ash, ash, dry dust, solid particles, |
Benefits
- Excellent sealing performance
- Superior wear resistance
- High temperature applications
- Low maintenance
- Longest life cycle among inlet valves
- Direct replacement
